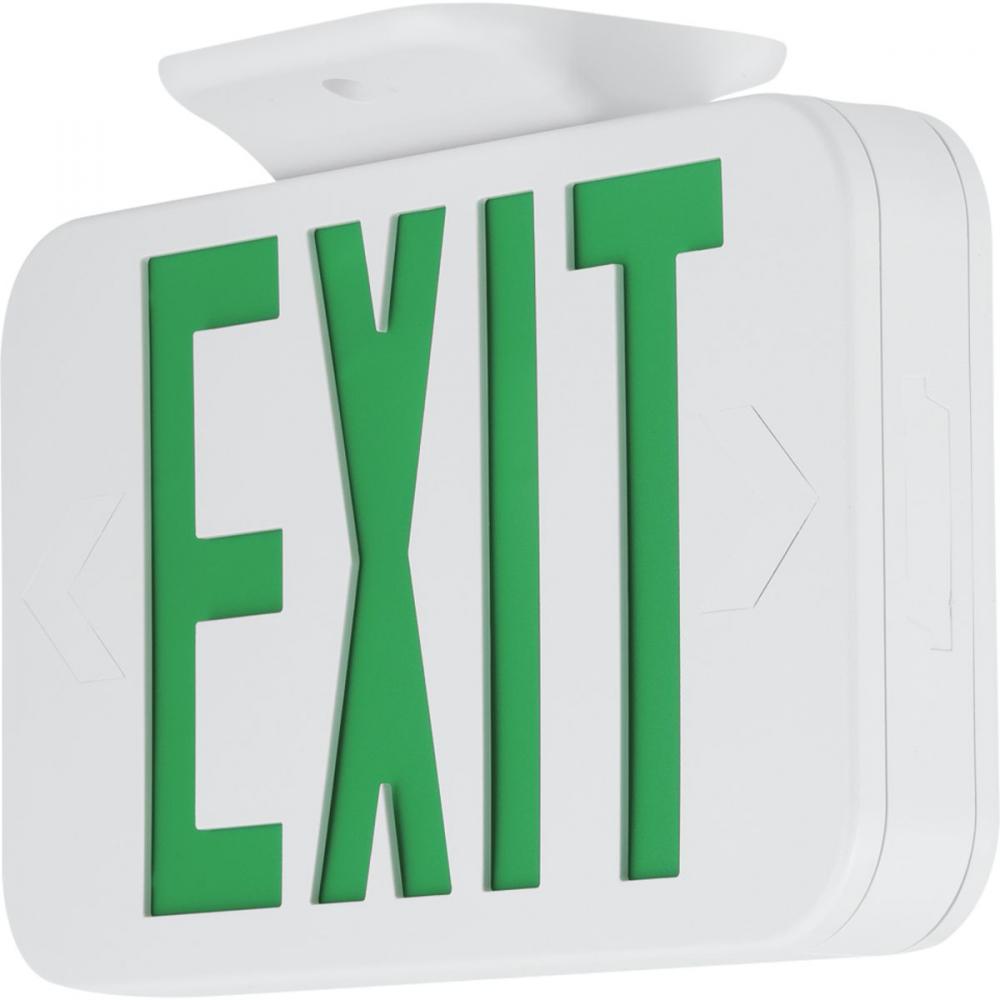

PETPE-UG-30 LED Emergency Exit Sign (PETPE-UG-30)
The PETPE Series offers quality and value with a compact and attractive LED based emergency exit. The white housing is made of high impact UL flame rated thermoplastic. Snap together canopy, housing, removable chevrons for quick and easy installation. Universal single or double-face. The PETPE Series can be applied in stair-wells, hallways, offices and other commercial applications. Green lettering.
Downloads
Product Specification
Item #
PETPE-UG-30
Dimensions
Height: 7.20"
Width: 2.00"
Length: 11.60"
Additional product details
Category
Utility
Subcategory
Exit Signs
Finish
White
Style
Traditional
Option
Energy Efficient
, Damp Rated
, LED
, Title 20
Voltage
100-120
Mount Type
Flush Mount
Location Rating
Damp Rated
Category
Exit Sign/Emergency
Finish
White
Option
Damp Rated
, Energy Efficient
, Title 20
Family
Exit Signs
Glass
Thermoplastic
Voltage
Dual-voltage 120 or 277 VAC
Number of Bulbs
1 Bulbs
Backplate Height
1.00
Backplate Width
4.30
Bulb Type
LED
Introduction Date
01/16/2017
Length
11.60
Material
Thermoplastic
Ship Carton Height
8.74
Ship Carton Length
15.94
Ship Carton Width
12.99
Ship Weight
4.00
Special Features
LED life-cycle of more than 10 years.;Molded-in template for Quick installation.;Dual-voltage 120 or 277V AC input.;Includes long-life Nickel Cadmium battery for UL recognized 90 minute emergency lighting.;Provided with test switch and AC-On indicator.;Can
Vendor Ship Method
Non UPS Shippable False
Warranty
2 year full
Weight
2.00
Wire Included
6 in
Americans with Disabilities Act
No
Backplate Depth
4.30
Bulb Base
LED
Bulb Included
Yes
Can be Mounted Up or Down
No
Canopy Shape
Square
Certified Listed Location
Damp Location Listed
Construction Material Main Part
Construction
Convertible Fixture Includes Both Mounts
FALSE
Country of Origin
CN
Dark Sky
No
Design Series
No
Energy Efficient
Yes
Energy Star
No
Finish Type
Painted
Grounded Convenience Outlet included
No
JA8
No
Lamp Type Actual
LED
Lamp Type Basic
Solid State
Mount Location
Ceiling
MTO
No
Prop 65
Yes
Prop 65 Description
Reproductive Harm, Cancer
Safety Rating
UL924
Title 20
Yes
Title 24
No
Weight of Fixture Exceeds NEC Limits
No
Width Diameter
2 in W.
Specific Products
Additional options that would change other selections
Included Items
Bulbs: (1) x LED
